Dozatory DVSV-50

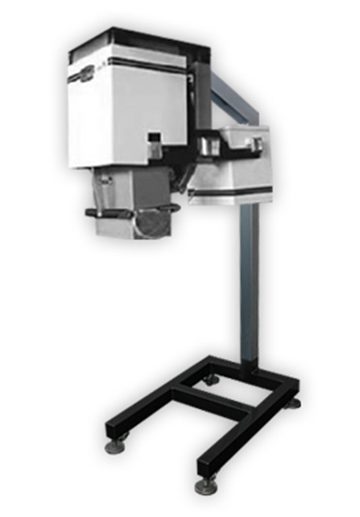

SEMIAUTOMATIC GROSS WEIGH SCALE DVSV-50

The Gross Weigh Scale DVSV-50 is used for packing explosive and highly dusting free-flowing products in open-mouth sacks from 25 kg up to 70 kg..

Specifications:

The main types of products: explosive and highly dusting substances (granules), etc.

Min. Weight, kg25
Max. Weight, kg70
Discreteness, kg0,005
Accuracy class (gost 24619)0.1
Productivity, 50kg-sacks per hour400
Overall dimensions, mm720х795х510
Weight, kg177
*The Gross Weigh Scale DVSV-50 and the mounting plate, which should be welded to the funnel/silos, are included in the scope of delivery. The Gross Weigh Scale DVSV-50 is screwed to the mounting plate. The construction with the funnel/silos, which is in the photo, is not included in the scope of delivery.

Terms of Use:

Ambient temperatureот – 50 °С до +50 °С
Warranty, months12
Service life, not less, years10
