SEMIAUTOMATIC GROSS WEIGH SCALE DVSV-F

The Gross Weigh Scale DVSV-F is used for packing frozen bulk products in packages and open-mouth sacks from 5 kg up to 70 kg.

Specifications:

The main types of products: frozen fruits and vegetables.

Min. Weight, kg5
Max. Weight, kg70
Discreteness, kg0,005
Accuracy class (gost 24619)0.1
Productivity, 50kg-sacks per hour400

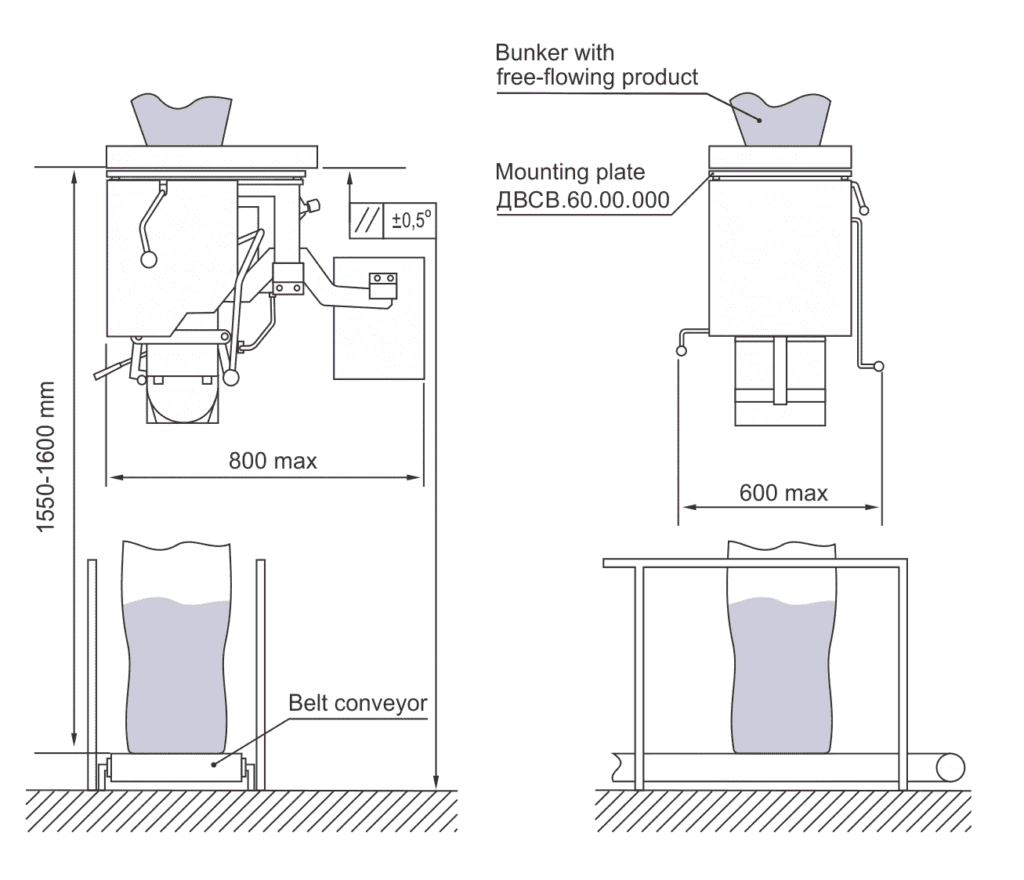

Overall dimensions, mm800х600х500
Weight, kg115

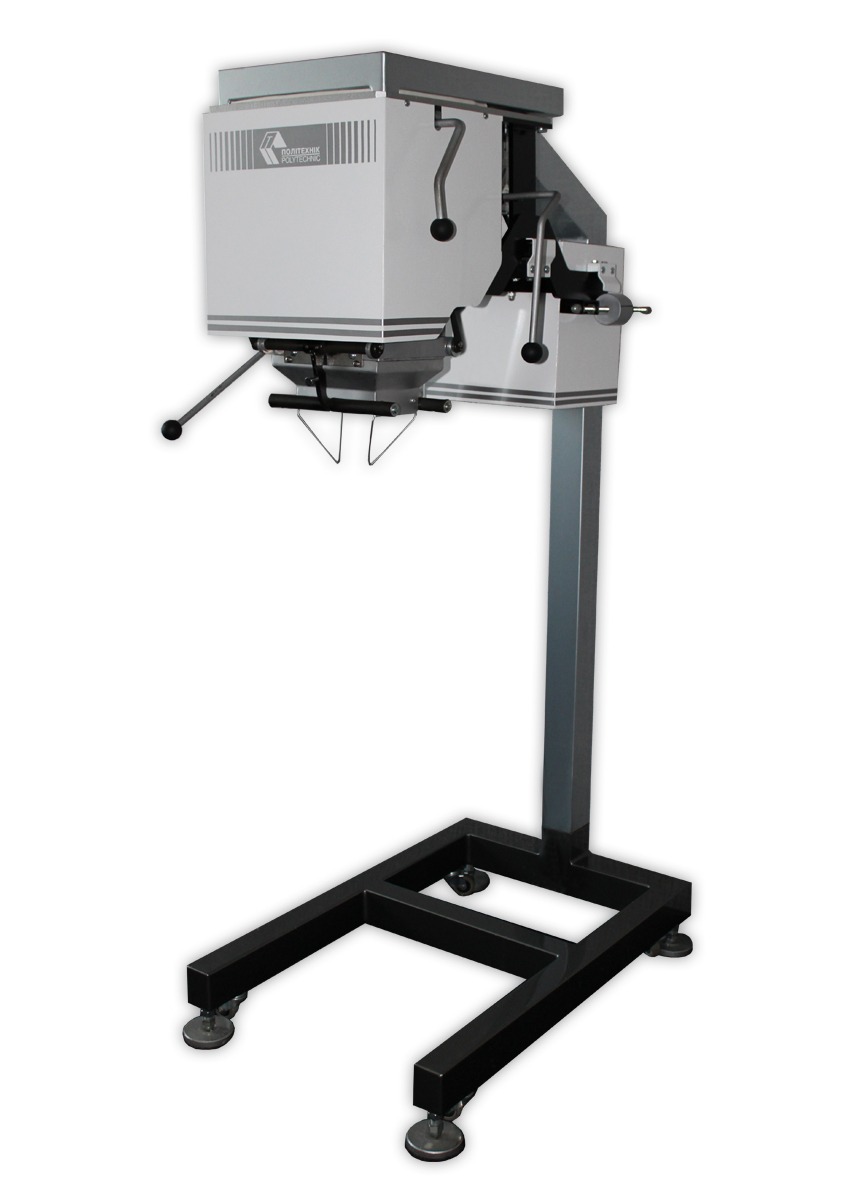

*The Gross Weigh Scale DVSV-F and the mounting plate, which should be welded to the funnel/silos, are included in the scope of delivery. The Gross Weigh Scale DVSV-F is screwed to the mounting plate. The construction with the funnel/silos, which is in the photo, is not included in the scope of delivery.

Terms of Use:

Ambient temperature

from – 50 °С to +50 °С

Warranty, months12
Service life, not less, years10

Description of the Gross Weigh Scale DVSV-F:

The principle of operation of the Gross Weigh Scale DVSV-F is based on the cyclic packaging of doses of a given weight into open-mouth sacks. Stages of the dosing process:

1. The operator puts the bag on the mouth of the Gross Weigh Scale DVSV-F.

2. Opens the gate, thereby starting the dosing process.

3. When the specified weight is reached, the Gross Weigh Scale DVSV-F automatically stops the dosing process.
