SEMIAUTOMATIC NET WEIGH SCALE DVSV-N
The Net Weigh Scale DVSV-N is used for packing bulk products in packages and open-mouth sacks from 0,2 kg up to 10 kg.
Specifications:
The main types of products: sugar, seeds, groats, animal feed, grain coffee, salt, cereals, mineral fertilizers, washing powders, fuel granules (pellets), dry construction mixtures, plastic granules, etc.
| Min. Weight, kg | 0,2 |
| Max. Weight, kg | 10 |
| Discreteness, kg | 0,005 |
| Accuracy class (gost 24619) | 0.1 |
| Productivity, 1kg-sacks per hour | 1000 |
| Productivity, 10kg-sacks per hour | 700 |

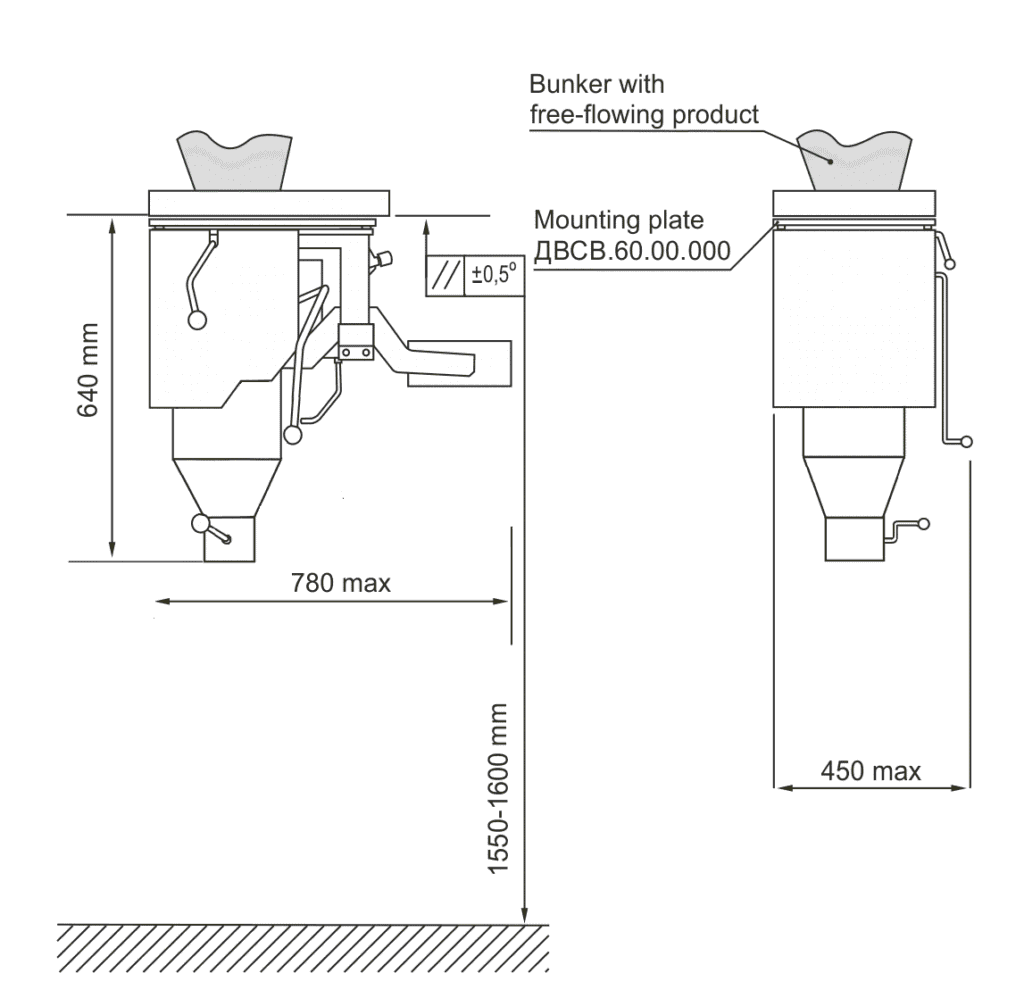

| Overall dimensions, mm | 800х450х650 |
| Weight, kg | 71 |

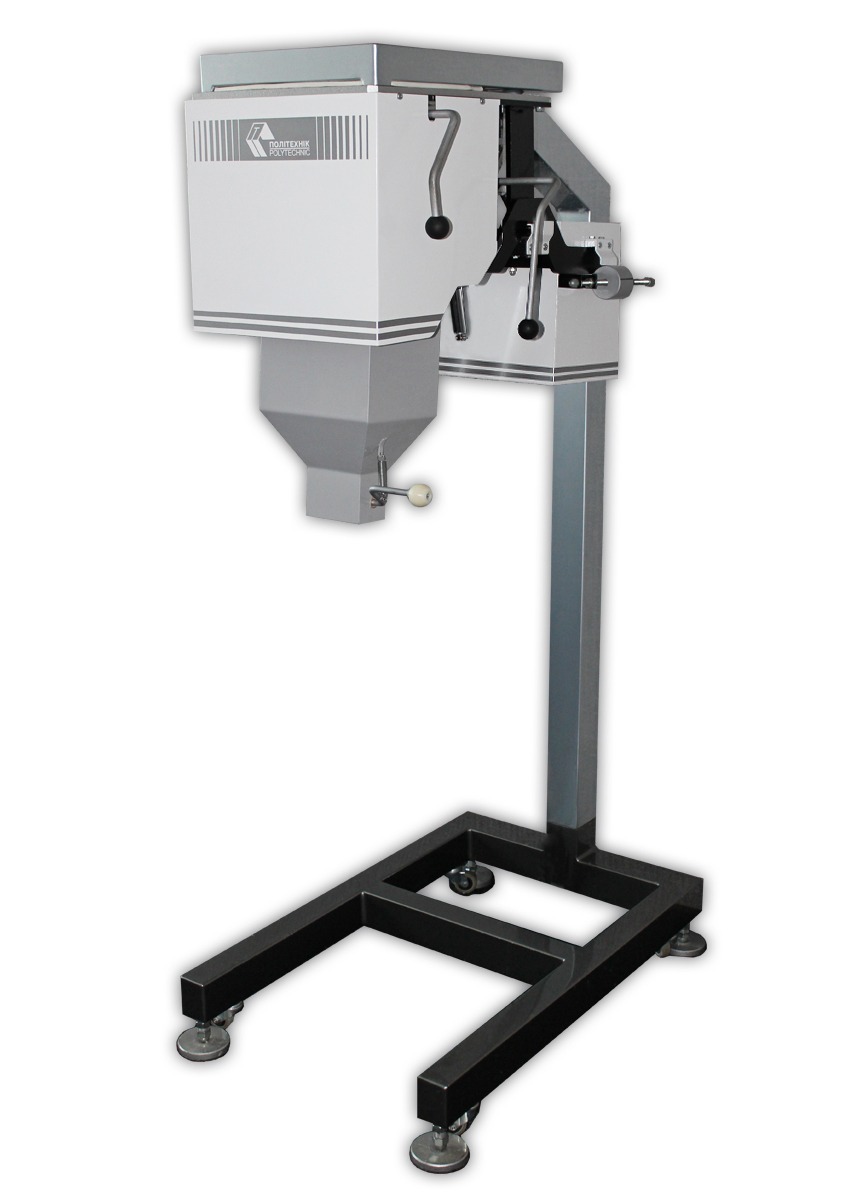

| *The Net Weigh Scale DVSV-N and the mounting plate, which should be welded to the funnel/silos, are included in the scope of delivery. The Net Weigh Scale DVSV-N is screwed to the mounting plate. The construction with the funnel/silos, which is in the photo, is not included in the scope of delivery. | |
Terms of Use:
| Ambient temperature | from – 50 °С to +50 °С |
| Гарантия, мес. | 12 |
| Срок службы, не менее, лет | 10 |
Description of the Net Weigh Scale DVSV-N:
The principle of operation of the Net Weigh Scale DVSV-N is based on the cyclic packaging of doses of a given net weight into any package. Stages of the dosing process:
1. The operator opens the gate, thereby starting the dosing process into the inner storage hopper of the Net Weigh Scale DVSV-N.
2. When the specified weight is reached, the Net Weigh Scale DVSV-N automatically stops the dosing process.
3. The operator opens the storage hopper’s flap and the substance from the storage hopper gets into the package.
