DVSV-50 Explosion-Safe Bagging Scale
The DVSV-50 fills explosion-hazardous and very dusty products into open-mouth bags in doses from 25 to 70 kg.
No sources of sparks: the scale is fully mechanical — no electricity, no sensors, no compressed air. That rules out ignition caused by the equipment itself.
Suitable products: dusty and explosion-hazardous powders, chemical raw materials, granules, dry building mixes and other high-risk bulk materials.
DVSV-50 specifications
| Min. Weight, kg | 25 |
| Max. Weight, kg | 70 |
| Discreteness, kg | 0,005 |
| Accuracy class (GOST 24619) | 0.1 |
| Productivity (50kg-sacks per hour) | 400 |
| Overall dimensions, mm | 720 х 795 х 510 |
| Weight, kg | 177 |

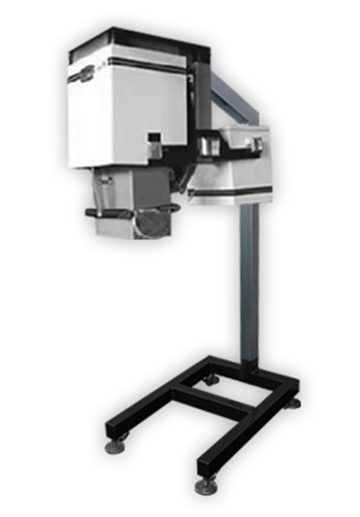

* Supply includes the scale and a mounting plate for the hopper. The support frame and the feed hopper shown in the photo are not included.
Where the DVSV-50 is used
The scale is used by chemical plants, dry-mix factories, flour mills and feed mills — wherever dust can form an explosive mixture. For ordinary bulk products the DVSV-M is enough; for a complete line, add a discharge conveyor. All models are in the catalog.
Operating conditions
| Ambient temperature | from –50 °С to +50 °С |
| Warranty, months | 12 |
| Service life, not less, years | 10 |
How the DVSV-50 works
- The operator places a bag on the filling spout.
- Opens the gate, and dosing begins.
- When the set weight is reached, the feed stops automatically.
